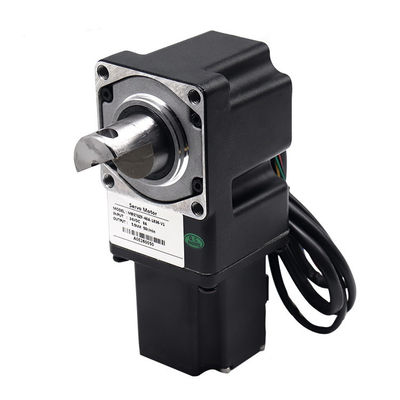

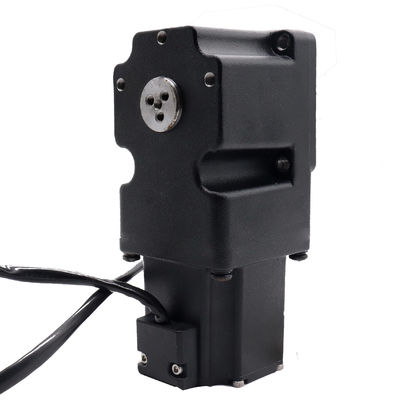

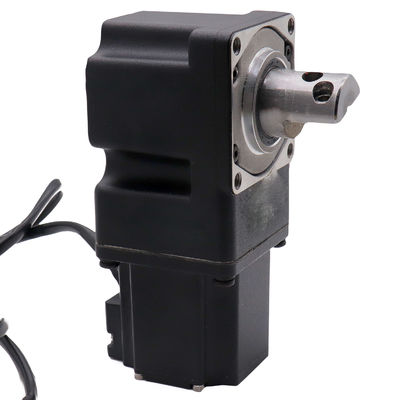

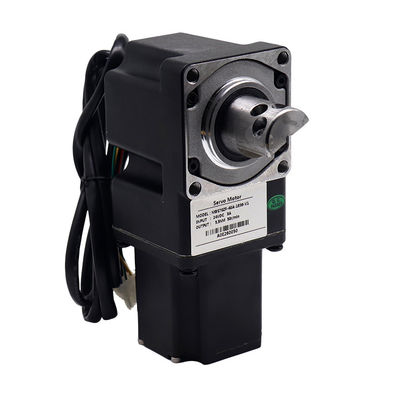

24V 40W 3A Low-voltage Brushless Servo Motor, Suitable For Access Control Gates

Product Description
The DC24V 40W BLDC Servo Motor is a high-performance, low-voltage brushless DC servo motor specifically engineered for automated swing gate and pedestrian access control systems. Designed to operate on a safe DC24V power supply with a rated power of 40W and a rated speed of 1800 RPM, this motor serves as the ideal core drive solution for modern swing barrier gates, speed gates, and tripod turnstiles. At the heart of its precision lies a high-resolution 2400-line incremental encoder, delivering 12,000 pulses per revolution (PPR) for exceptional position feedback and closed-loop servo control, offering a resolution 400 times higher than that of traditional brushless motors. With a durable IP54 protection rating and a tested service life exceeding 6 million cycles, this motor is built to withstand demanding environments for both indoor and outdoor applications.

Specification

Features
① High-Resolution Position Feedback: The integrated 2400-line incremental encoder provides 12,000 pulses per revolution (PPR) for accurate positioning and smooth motion control, achieving 125 times more precision than traditional brushless motors.

② Low-Voltage Safe Operation: Operating at DC24V with a rated current of 3A, the motor ensures enhanced safety for users and installers, complying with standard security and gate automation requirements.

③ Efficient BLDC Technology: Brushless DC design delivers superior performance, higher torque, lower noise, and a longer lifespan than brushed alternatives, with no carbon brushes to replace, ensuring maintenance-free operation.

④ Servo Closed-Loop Control: The advanced servo control system enables smooth starts and stops to reduce mechanical stress, along with 2x current overload capability and strong push resistance for reliable operation.

⑤ Robust Planetary Gearbox: Equipped with a high-precision 1:36 reduction ratio gearbox, the motor provides high output torque (peak torque up to 3.8N·m) and excellent durability for swing gate applications.

⑥ Sensitive Anti-Pinch Protection: The servo vector algorithm ensures instant detection of obstacles to prevent injury to pedestrians, providing a critical safety feature for busy passage environments.

⑦ Compact Design & Easy Replacement: With a 70mm width and D-type motor shaft design, the motor features a compatible installation size with traditional brushless motors, allowing for easy interchange and retrofitting of existing gate systems.

Applications
