DC48V 750W Robot Servo Motor With Brake And Absolute Encoder

Наименование марки:	Jiayu
Номер модели:	EBS80F-750C-30DH5Z-BEEL-ST-00
МОК:	3sets
цена:	лично переговорить
Подробная информация об упаковке:	Упаковка
Условия оплаты:	Т/Т

Подробная информация

Характер продукции

Подробная информация

Место происхождения:

Шэньчжэнь

Сертификация:

ce ROHS

Документ:

Название продукта:

Мотор сервопривода робота

Власть:

750 Вт

Напряжение:

Рейтинг скорости:

3000 об / мин

Номинальный ток:

18.7A

Дифференциальный кодировщик:

2500 строк

Рабочая температура:

-25℃-55℃

Оцененный крутящий момент:

2.4NM

Количество полюсов:

Пиковой ток:

Масса:

Поставка способности:

500 комплектов

Характер продукции

DC48V 750W Robot Servo Motor With Brake And Absolute Encoder

Specification of Robot Servo Motor

product name	AGV servo motor
Voltage	48v
Incremental encoder	2500 lines
Rated speed	3000rpm
Power	750w
Feature	greatly reduced and the operation is smoothly
Rated current	18.7A
Rated torque	2.4nm
Number of poles	10
Weight	3kg

Product description of Robot Servo Motor

Easy for speed & direction adjustment Robot Servo Motor

EBS80F-750C-30T2H5Z-B1EL-ST-01 series are designed to working with servo drive, adopts incremental encoder 2500 lines, suitable for indoor and outdoor situation, easy to install, and our servo motor widely use for Logistics sorting, medical instruments, 3C equipment, packaging, etc. Strong stability for driver.

Products features of Robot Servo Motor

1. Highly integrated design reduces installation complexity and saves space · Eliminate the matching process between the driver and the motor, reducing the cost of use
2. Adopt EtherCAT/CANopen protocol Wide voltage input (24v~80VDC)
3. Optional off brake protection

4. Integrated single-turn absolute encoder, limited zero memory
5. Provide speed and position feedforward parameter configuration to improve response speed
6. Integrated I/O, can be set to positive limit, negative limit, origin, multi-function digital output, pulse input detection
7. Real-time fault monitoring and protection functions, including overcurrent, overload, overvoltage, undervoltage, overheating,overspeed, and out of tolerance protection

8. Provide application scenarios and development kit support for multiple scenarios, shortening user development cycle

Advantages of Robot Servo Motor

① The motor winding protects the power supply from short circuit

② Motor winding inter-phase short circuit protection

③ Encoder disconnection protection

④ Over-voltage protection

⑤ Over-current protection

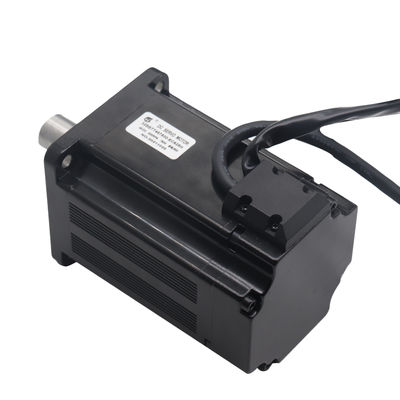

DC48V 750W Robot Servo Motor With Brake And Absolute Encoder 0

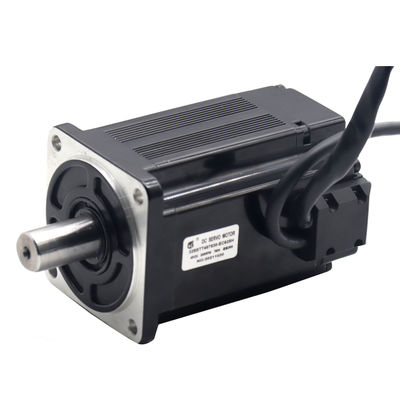

DC48V 750W Robot Servo Motor With Brake And Absolute Encoder 1

Notice for Usage:

1). Please don't use motor out of the range of nameplate of gear box and motor and the specification of product catalogue, avoiding getting an electric shock, hurting or damaging the device.

2). Please do not put your fingers and things into the opening part of gear or motor ,in order to prevent getting and electric shock,hurting,catching a fire of damaging device etc.
3). Please do not use the Injured gear head of motor, in order to prevent hurting,catching a fire etc.

4). Please do not put off the nameplate.

5). If the products are reformed by the customers personally, it no longer belongs to the guarantee scope, and our company doesn’t undertake any responsibility.

6). When you move it, if it shed off or tilt to one side, it is very dangerous, please pay more attention.

7). Please must not put the flammable thing near the gear head and motor, in order to prevent catching a
fire.

FAQ

Q1. What are your products can be use to ?
A: Our products can be used in packaging machine, AGV machine, Logistics sorting

machine, medical instruments machine and so on.

Q2. What kind of Payment methods do you accept ?
A: We can accept Paypal ,TT, Money Gram

Q3: What kind of shipping methods do you use ?
A:1) For samples or small batch , air shipping is recommended . (DHL,Fedex,TNT UPS ,EMS or Aramex) ,We will provide the tracking No. Once we get it after we ship out the products.
2)For mass production or big batch, ocean shipping/sea shipment is recommended.

Q4: What is the lead time of my products?
A: Lead time : For standard samples , 2-5 days will be OK . For mass production , the lead time depend on the quantities you need .
Note: Sometimes your local customs may charge tax from you. then you should pay it to get the package, sometimes not have.The exact delivery time is delayed on the post office and customs, we can't control it. If the product is delayed, pls pay more patience to wait and ask us to extend delivery dates for you.

Q5: What is your warranty time ?
A: Warranty time : 12 months. And we provide life-long technical service and after-sale service.

Q6: Can i get a free sample?
A: Sorry, we don’t provide free sample.
