Control Board Integrated Driver and Controller Function for Tripod Turnstile Gates

Наименование марки:	CSJY
Номер модели:	MBC2406
МОК:	2
цена:	Negotiate
Подробная информация об упаковке:	cartons
Условия оплаты:	T/T

Подробная информация

Характер продукции

Подробная информация

Place of Origin:

China

Сертификация:

Документ:

Input power supply:

DC24V, dual power connection, 150W/6.5A on one side is recommended; Single power connection, 300W recommended

Adaptor motor:

DC brushless motor below 60W with 2400-line position feedback

Communication mode:

RS232 serial communication, supporting Modbus protocol

Power-off:

DC12V battery, or optional super capacitor module

Infrared sensor:

6 independent interfaces, PNP, NPN normally open, open collector type

Voice output:

external 8W 4Ω speaker

Anti-pinch protection:

Current+position double detection, adjustable sensitivity

Control effect:

The open speed is fast, and it is stable and does not shake

Working environment:

-20℃ ~ 55℃

Application:

swing gate, speed gate, tripod turnstile, sliding gate

Supply Ability:

5000pcs/month

Характер продукции

Control Board Integrated Driver and Controller Function for Tripod Turnstile Gates

Product description

This system consists of access gate control board, brushless servo motor, servo control technology, real-time

detection of motor position, self-learning load curve without external encoder, physical anti-pinch protection and

adjustable sensitivity. Support access mode settings such as card swiping, freedom and prohibition at the entrance and exit;It has the logic detection of illegal intrusion, trailing traffic, detention, reverse traffic, infrared anti-pinch, etc., and is suitable for access gate equipment such as speed gate/swing gate, flap gate/sliding gate, etc.

Technical parameter

Input power supply	DC24V, dual power connection, 150W/6.5A on one side is recommended; Single power connection, 300W recommended;
Adaptor motor	DC brushless motor below 60W with 2400-line position feedback
Communication mode	RS232 serial communication, supporting Modbus protocol
Power-off	DC12V battery, or optional super capacitor module
Infrared sensor	6 independent interfaces, PNP, NPN normally open, open collector type
Voice output	external 8W 4Ω speaker
Working environment	-20℃ ~ 55℃, humidity below 90% (no condensation)

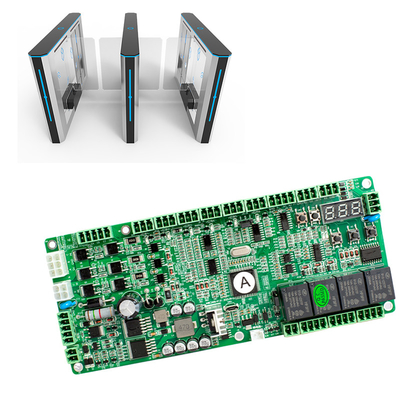

Control Board Integrated Driver and Controller Function for Tripod Turnstile Gates 0

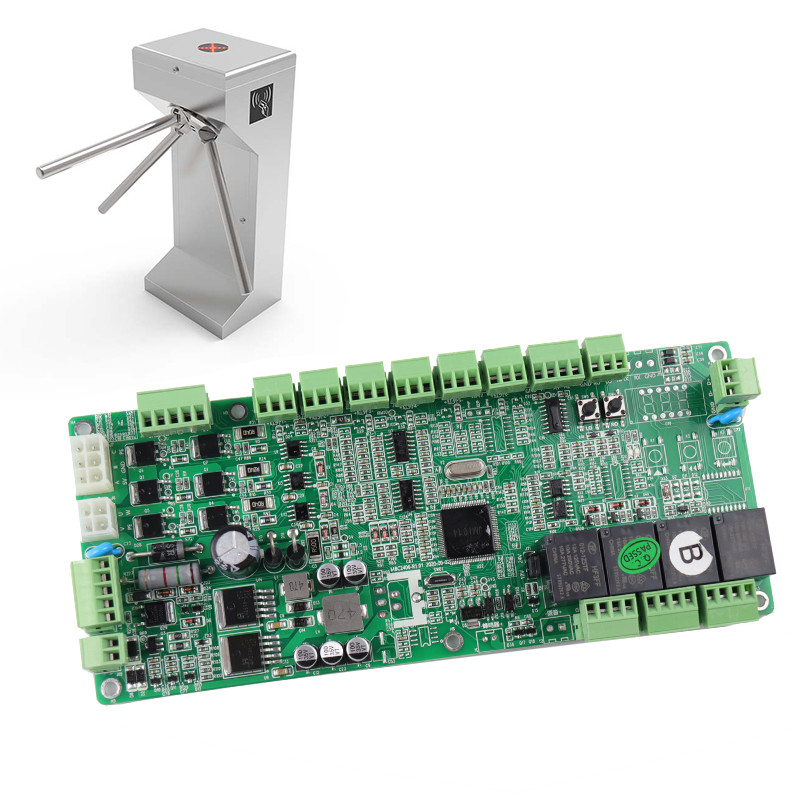

Control Board Integrated Driver and Controller Function for Tripod Turnstile Gates 1

Application

This control board suitable for swing gate, speed gate, sliding gate, tripod turnstile, etc

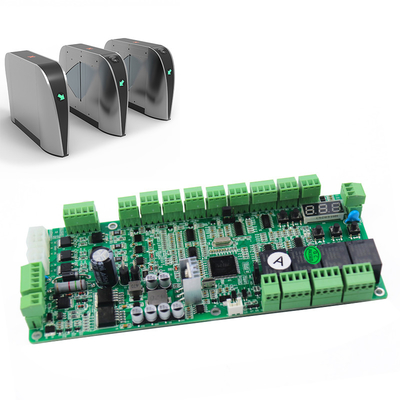

Control Board Integrated Driver and Controller Function for Tripod Turnstile Gates 2

Control Board Integrated Driver and Controller Function for Tripod Turnstile Gates 3

RFQ

1.Q:Can i get sample ?

A:We are hornered to offer you sample for quickly check .

2.Q:Do you have the product in stock ?

A:All standard models we got in stock .special products are manufactured according to your requirement .

3.Q:When do you delivery ?

A:It usually take 3-7 working days .but the exactly time vary from different order at the different time .

4.Q:How long can it works ?

A:Properly use can work for 3 years .

5.Q:Warranty period ?

A:18 months after the days then the products leave our factory .

6.Q:Payment period ?

A:In general.30% by T/T of the amount as deposit .70% by T/T of the amount need be paid within one week after the day when you receive the copy of the B/L by email or consultations .
